StarTech.com VGA VIDEO EXTENDER OVER CAT 5 WITH AUDIO
VGA VIDEO EXTENDER OVER CAT 5 WITH AUDIO
- Brand: StarTech.com
- Category: Audio & Video
- SKU: 2977640
- MPN: ST122UTPA
StarTech.com
StarTech.com VGA Video Extender over Cat 5 with Audio
- SKU
- CNZ-IM-022117
- MPN
- ST122UTPA
- Rating
- No reviews yet
Overview

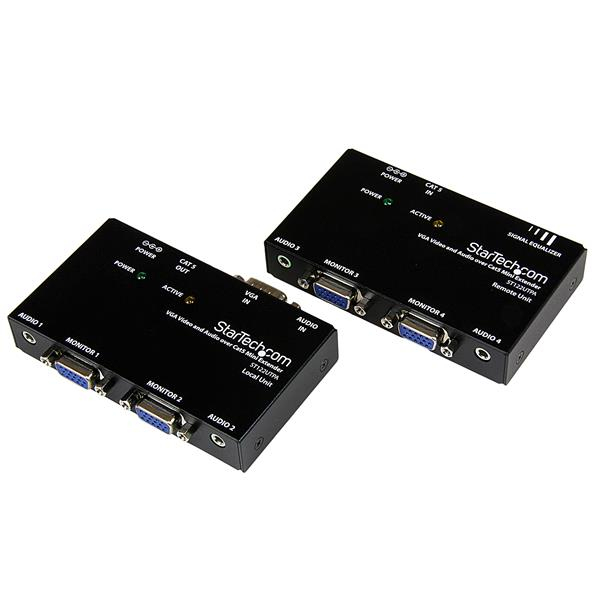

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.
The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Cost-effective VGA extension through non-proprietary network cabling
- Built-in mounting brackets, for a tidy and professional installation
The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Cost-effective VGA extension through non-proprietary network cabling
- Built-in mounting brackets, for a tidy and professional installation
Key features
- Type: AV transmitter & receiver
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 150 m
- Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900
- Material: Aluminium
- Daisy chain: No
- Product colour: Black
- Certification: CE, FCC
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- VGA (D-Sub) input ports: 2
- VGA (D-Sub) output ports: 2
- Audio input: 2 x 3.5 mm
- Audio output: 2 x 3.5 mm
- DC-in jack: Yes
- Operating voltage: 12 V
- Output current: 0.5 A
- Power consumption (typical): 6 W
- External power adapter: Yes
- Receiver dimensions (WxDxH): 83 x 60 x 20 mm
- Receiver weight: 181 g
- Transmitter dimensions (WxDxH): 83 x 60 x 20 mm
- Transmitter weight: 181 g
- Package dimensions (WxDxH): 92 x 242 x 188 mm
Specifications
Power
| Operating voltage | 12 V |
|---|---|
| Output current | 0.5 A |
| Power consumption (typical) | 6 W |
| External power adapter | Yes |
Features
| Type | AV transmitter & receiver |
|---|---|
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 150 m |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 |
| Material | Aluminium |
| Daisy chain | No |
| Product colour | Black |
| Certification | CE, FCC |
Packaging data
| Package dimensions (WxDxH) | 92 x 242 x 188 mm |
|---|---|
| Package weight | 1.2 kg |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Mounting brackets included | Yes |
Technical details
| Audio support | Yes |
|---|---|
| Compliance certificates | RoHS |
Ports & interfaces
| RJ-45 input ports | 1 |
|---|---|
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 2 |
| VGA (D-Sub) output ports | 2 |
| Audio input | 2 x 3.5 mm |
| Audio output | 2 x 3.5 mm |
| DC-in jack | Yes |
Weight & dimensions
| Receiver dimensions (WxDxH) | 83 x 60 x 20 mm |
|---|---|
| Receiver weight | 181 g |
| Transmitter dimensions (WxDxH) | 83 x 60 x 20 mm |
| Transmitter weight | 181 g |
