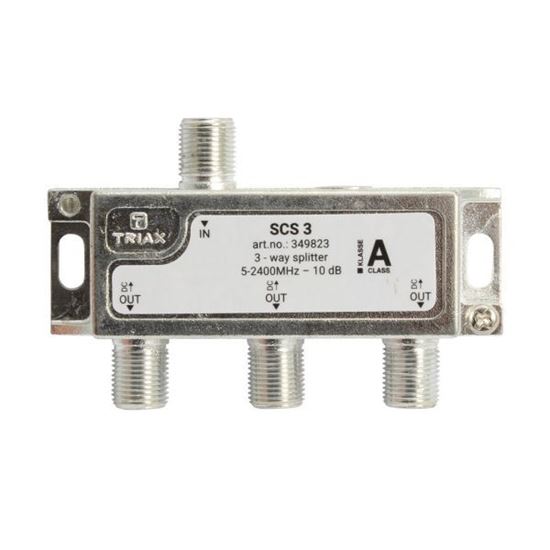

TRIAX RF 3-Way Splitter 5~2400MHz. All Ports Power Pass - Diode
RF 3-Way Splitter 5 2400MHz. All Ports Power Pass - Diode Steered
- Brand: Triax
- Category: Audio & Video
- SKU: 349823
- MPN: 349823
TriaxTRIAX RF 3-Way Splitter 5~2400MHz. All Ports Power Pass - Diode
- SKU
- CNZ-CD-003260
- MPN
- 349823
Overview
TRIAX RF 3-Way Splitter 5~2400MHz. All Ports Power Pass - Diode Steered
Specifications
Application
| Application | SAT-IF, MATV 2.4Ghz +DC (out->in) |
|---|
Certification
| Certification | EN 50581:2012 (RoHS II) |
|---|
Main material
| Main material | Zinc diecast/Sn plated |
|---|
Connector Type
| Connector Type | F-female (IEC 61 169-24) |
|---|
DC Passthrough
| DC Passthrough | Yes (max. 0.5A/24V) |
|---|
Screening Efficiency
| Screening Efficiency | EN50083-2 (Class A) |
|---|
Temperature - operating
| Temperature - operating | -30°C~+60°C |
|---|
Isolation (tap-tap) 5~40MHz
| Isolation (tap-tap) 5~40MHz | 23dB |
|---|
Shielding efficiency VHF/UHF
| Shielding efficiency VHF/UHF | >85dB |
|---|
Return loss (in-out) 5~-40MHz
| Return loss (in-out) 5~-40MHz | 10.0dB |
|---|
Isolation (tap-tap) 40~1000MHz
| Isolation (tap-tap) 40~1000MHz | 22dB |
|---|
Insertion loss (in-out) 5~40Mhz
| Insertion loss (in-out) 5~40Mhz | 6.5dB |
|---|
Return loss (in-out) 40~1000MHz
| Return loss (in-out) 40~1000MHz | 12.0dB |
|---|
Isolation (tap-tap) 1000~2150MHz
| Isolation (tap-tap) 1000~2150MHz | 23dB |
|---|
Isolation (tap-tap) 2150~2400MHz
| Isolation (tap-tap) 2150~2400MHz | 23dB |
|---|
Return loss (in-out) 1000~2150MHz
| Return loss (in-out) 1000~2150MHz | 13.0dB |
|---|
Return loss (in-out) 2150~2400MHz
| Return loss (in-out) 2150~2400MHz | 13.0dB |
|---|
Insertion loss (in-out) 40~1000Mhz
| Insertion loss (in-out) 40~1000Mhz | 7.5dB |
|---|
Insertion loss (in-out) 1000~2150MHz
| Insertion loss (in-out) 1000~2150MHz | 10.0dB |
|---|
Insertion loss (in-out) 2150~2400Mhz
| Insertion loss (in-out) 2150~2400Mhz | 10.5dB |
|---|
$39.09inc GST
