ZEBRA DS8178-HC FIPS PREZ CRADLE FAST USB KIT
DS8178-HC FIPS PRESENTATION CRADLE (WITH FASTENERS) USB KIT: DS8178-HCMF00BVMWW SCANNER CBA-U21-S07ZBR SHIELDED USB CABLE CR8178-PCM00FBWW CRADLE FAST-PC0081W-Q1 FASTENERS
- Brand: ZEBRA
- Category: Scanners
- SKU: 3962813
- MPN: DS8178-HCBU210FP5W

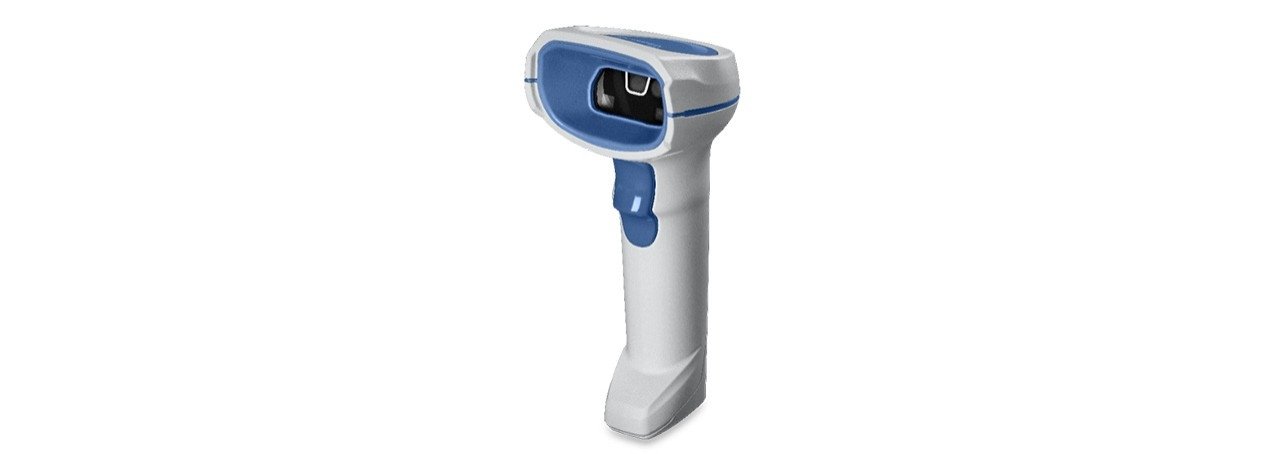

ZEBRAZebra DS8178-HC Handheld bar code reader 1D/2D LED White
Overview
FIPS Presentation Cradle,
Key features
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- Sensor type: LED
- Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
- 2D (matrix & stacked) barcodes supported: Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Wavelength: 528 nm
- Tilt reading angle: 0 - 360°
- Pitch reading angle: 0 - 60°
- Yaw reading angle: 0 - 60°
- Connectivity technology: Wired & Wireless
- Standard interfaces: RS-232, USB, Keyboard wedge
- Wireless range: 100 m
- Bluetooth version: 4.0
- Bluetooth Low Energy (BLE): Yes
- PC connection: RS-232/USB
- International Protection (IP) code: IP42
- Product colour: White
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery type: Built-in battery
- Number of batteries supported: 1
- Battery capacity: 2500 mAh
- Number of reads per charge: 65000
- Battery life: 83 h
Specifications
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery type | Built-in battery |
|---|
| Number of batteries supported | 1 |
|---|
| Battery capacity | 2500 mAh |
|---|
| Number of reads per charge | 65000 |
|---|
| Battery life | 83 h |
|---|
| Input voltage | 5 V |
|---|
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| Sensor type | LED |
|---|
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
|---|
| Wavelength | 528 nm |
|---|
| Tilt reading angle | 0 - 360° |
|---|
| Pitch reading angle | 0 - 60° |
|---|
| Yaw reading angle | 0 - 60° |
|---|
Performance
| International Protection (IP) code | IP42 |
|---|
| Product colour | White |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| Standard interfaces | RS-232, USB, Keyboard wedge |
|---|
| Wireless range | 100 m |
|---|
| Bluetooth version | 4.0 |
|---|
| Bluetooth Low Energy (BLE) | Yes |
|---|
| PC connection | RS-232/USB |
|---|
Weight & dimensions
| Width | 66 mm |
|---|
| Depth | 107 mm |
|---|
| Height | 168 mm |
|---|
| Weight | 235 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
$1,766.39inc GST
