APC ATS Rack 200-208V-30A L6-30 in (1

APC Rack ATS 200-208V 30A L6-30 in (16) C13 (2) C19 out

  • Brand: APC
  • Category: UPS Systems
  • SKU: 6182264
  • MPN: AP4432A
APC

APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 200/208V, 2…

SKU
CNZ-IM-000061
MPN
AP4432A
−14%
APC ATS Rack 200-208V-30A L6-30 in (1 — APC

Overview

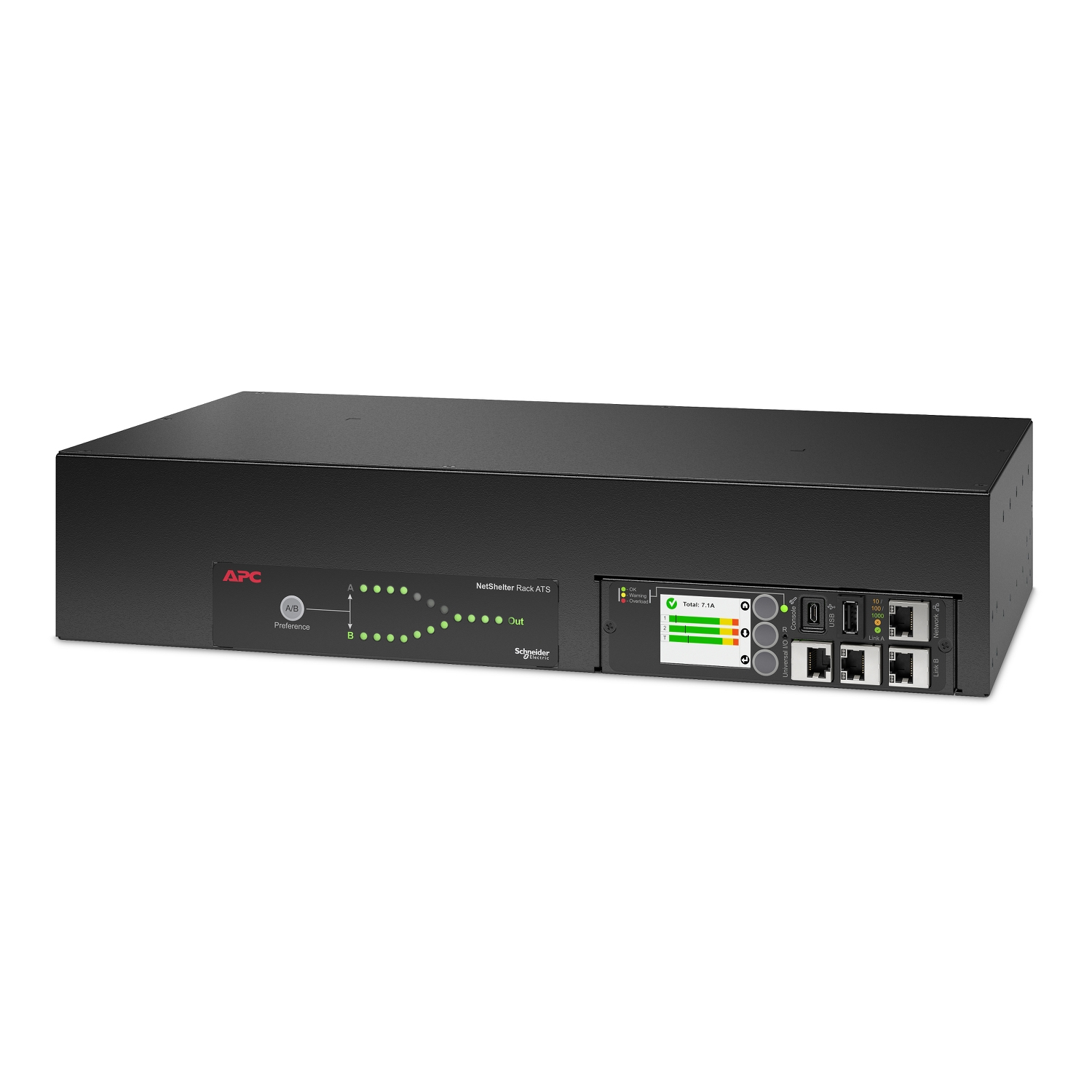

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4432A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4432A is single phase 2U Rack ATS with 30A rated current, 200V/208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with inbuilt circuit breaker protection, 2 NEMA L6-30P inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Key features

  • Input operation voltage (min): 180 V
  • Input operation voltage (max): 220 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 30 A
  • Output operation voltage (min): 200 V
  • Output operation voltage (max): 208 V
  • Output current: 30 A
  • LED indicators: Yes
  • Form factor: Rackmount
  • Rack capacity: 2U
  • Product colour: Black
  • Certification: REACH, RoHS, WEEE, PSE, TÜV-C, TÜV-NURTL
  • AC outlets quantity: 18 AC outlet(s)
  • AC outlet types: C13 coupler, C19 coupler
  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Doesn't contain: Mercury
  • Total carbon footprint (kg of CO2e): 754.59
  • Warranty period: 2 year(s)
  • Compliance certificates: REACH, RoHS, WEEE
  • Width: 432 mm
  • Depth: 236 mm

Specifications

Power

Input operation voltage (min)180 V
Input operation voltage (max)220 V
AC input frequency50 - 60 Hz
Input current30 A
Output operation voltage (min)200 V
Output operation voltage (max)208 V
Output current30 A

Design

Form factorRackmount
Rack capacity2U
Product colourBlack
CertificationREACH, RoHS, WEEE, PSE, TÜV-C, TÜV-NURTL

Performance

LED indicatorsYes

Packaging data

Package width584 mm
Package depth356 mm
Package height210 mm
Package weight9.07 kg

Technical details

Doesn't containMercury
Total carbon footprint (kg of CO2e)754.59
Warranty period2 year(s)
Compliance certificatesREACH, RoHS, WEEE

Ports & interfaces

AC outlets quantity18 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler

Weight & dimensions

Width432 mm
Depth236 mm
Height88 mm
Weight6.58 kg

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Questions

$2,996.89inc GST
