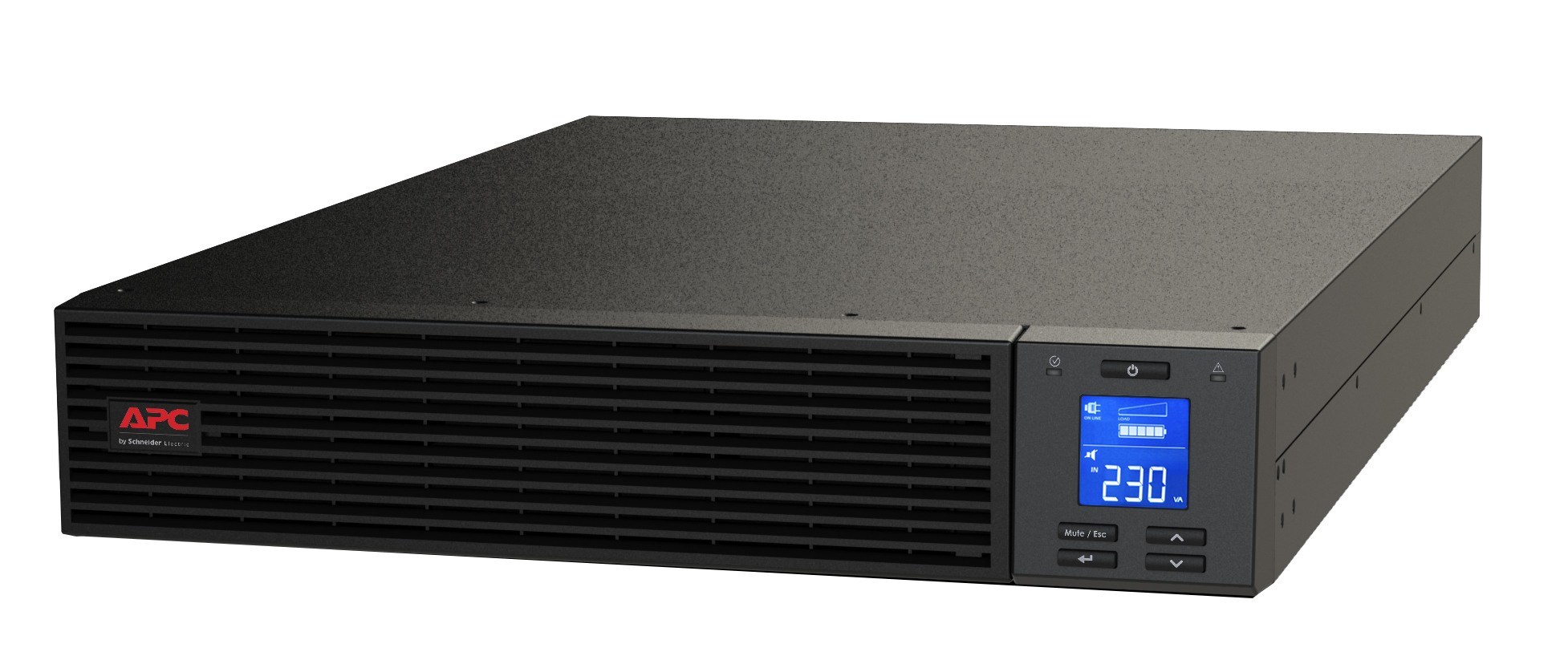

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV200. The UPS is compatible with SRVRK1 rail kit sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Key features
UPS topology: Double-conversion (Online)
Output power capacity: 1 kVA
Output power: 800 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 280 V
Input frequency: 40/70 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Output voltage regulation: 1%
Surge energy rating: 600 J
Transfer time (Line Mode to Battery Mode): 0 ms
Number of input phases: 1
Number of output phases: 1
Efficiency: 88%
Input power factor: 0.95
Output power factor: 0.8
Crest factor: 3:1
ECO mode: Yes
Emergency Power Off (EPO): No
Output voltage Total Harmonic Distortion (THD): 3%
Noise level: 50 dB
Audible alarm(s): Yes
Specifications
Design
Form factor
Rackmount
Rack capacity
2U
Product colour
Black
Display type
LCD
LED indicators
Yes
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
4 h
Automatic battery test
Yes
Features
UPS topology
Double-conversion (Online)
Output power capacity
1 kVA
Output power
800 W
Waveform
Sine
Input operation voltage (min)
160 V
Input operation voltage (max)
280 V
Input frequency
40/70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Output voltage regulation
1%
Surge energy rating
600 J
Transfer time (Line Mode to Battery Mode)
0 ms
Number of input phases
1
Number of output phases
1
Efficiency
88%
Input power factor
0.95
Output power factor
0.8
Crest factor
3:1
ECO mode
Yes
Emergency Power Off (EPO)
No
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
50 dB
Audible alarm(s)
Yes
Audible alarm modes
Alarm when on battery, Fault, Low battery alarm, Overload alarm
