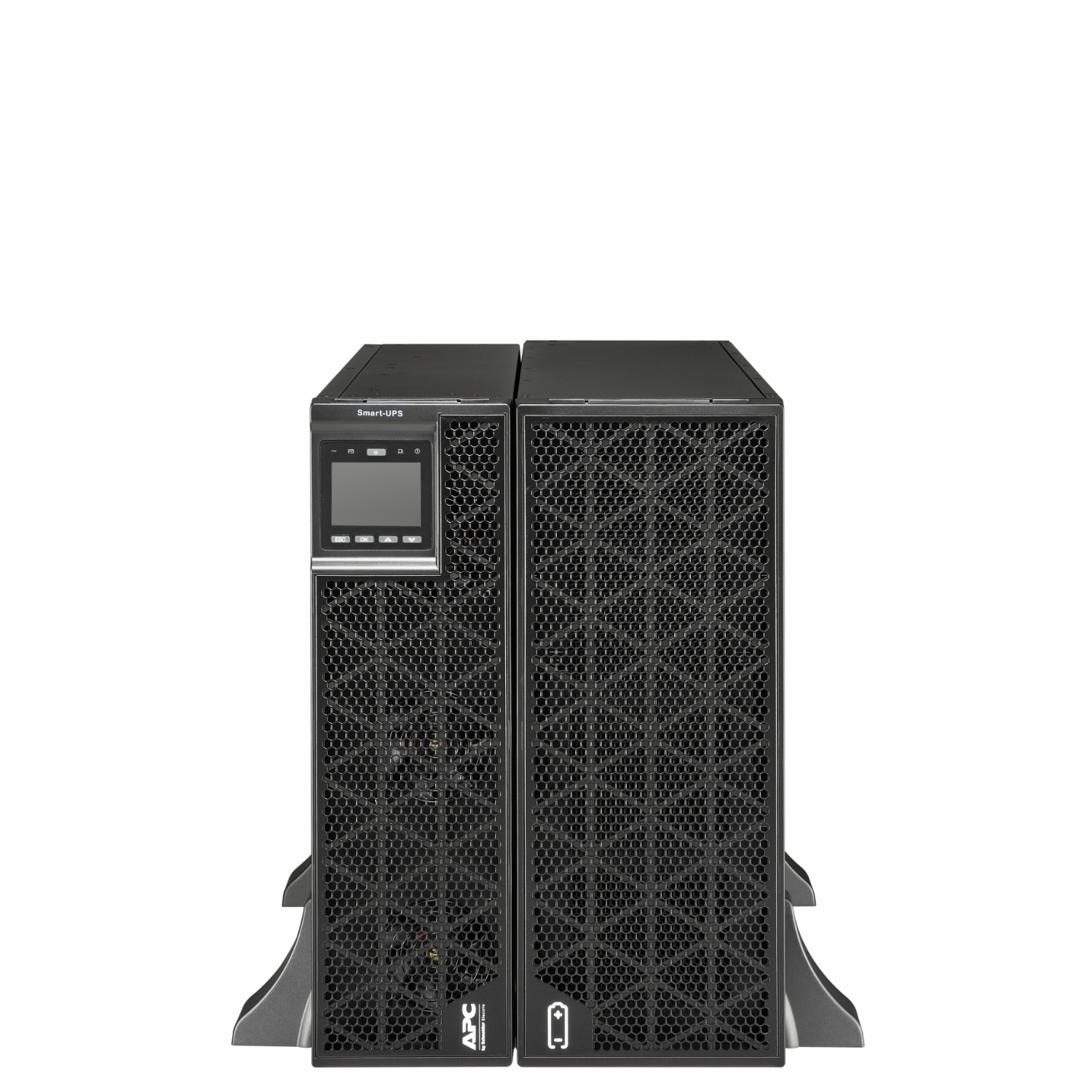

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
Key features
UPS topology: Double-conversion (Online)
Output power capacity: 15 kVA
Output power: 15000 W
Waveform: Sine
Input operation voltage (min): 160 V
Input operation voltage (max): 415 V
Input frequency: 40/70 Hz
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Output frequency regulation: 0.1 Hz
Maximum current: 66 A
Number of output phases: 3
Efficiency: 93%
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Input current Total Harmonic Distortion (THD): 5%
Noise level: 58 dB
Surge protection: Yes
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Auto-restart: Yes
AC outlet types: Hard Wire 5-wire (3P + N + E)
Power plug: Hardwire
USB port: Yes
Specifications
Design
Form factor
Rackmount/Tower
Rack capacity
7U
Product colour
Black
Display type
LCD
LED indicators
Yes
International Protection (IP) code
IP20
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery voltage
192 V
Battery life (max)
5 year(s)
Battery recharge time
4 h
Cold start
Yes
Features
UPS topology
Double-conversion (Online)
Output power capacity
15 kVA
Output power
15000 W
Waveform
Sine
Input operation voltage (min)
160 V
Input operation voltage (max)
415 V
Input frequency
40/70 Hz
Output operation voltage (max)
230 V
Output frequency
50/60 Hz
Output frequency regulation
0.1 Hz
Maximum current
66 A
Number of output phases
3
Efficiency
93%
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Input current Total Harmonic Distortion (THD)
5%
Noise level
58 dB
Surge protection
Yes
Audible alarm(s)
Yes
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
