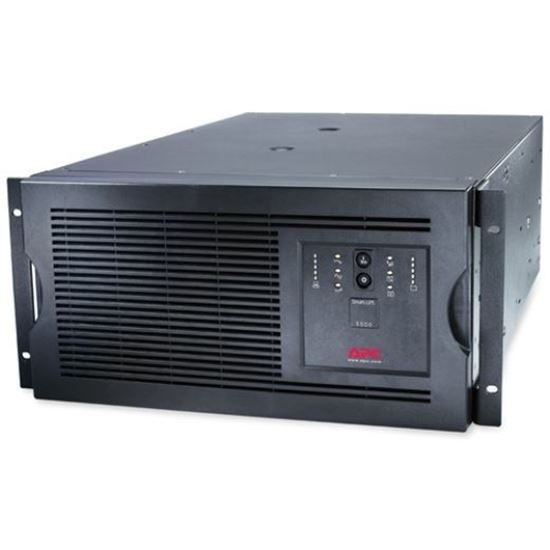

APC Smart-UPS 5000VA (4000W) 5U Rackmount/Tower. 230V Input/Output
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SUA5000RMI5U
- MPN: SUA5000RMI5U
APC
APC Smart-UPS SUA5000RMI5U - 5000VA, 8x C13, 2x C19 outlet, NMC,…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−7%
Overview
APC Smart-UPS 5000VA (4000W) 5U Rackmount/Tower. 230V Input/Output 8x IEC C13 Outlets. With Battery Backup. LED Status Indicators. USB Connectivity. Hard Wire Input. Rack Mount Kit Included
Key features
- UPS topology: Line-Interactive
- Output power capacity: 5 kVA
- Output power: 4000 W
- Waveform: Sine
- Input operation voltage (min): 151 V
- Input operation voltage (max): 302 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency regulation: 47 - 53 Hz
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 480 J
- Hold time (min): 2 ms
- Hold time (max): 4 ms
- Number of output phases: 1
- Efficiency: 96%
- Noise level: 53 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Auto-restart: Yes
- AC outlet types: C13 coupler, C19 coupler
- Power plug: Hard Wire 3-wire
- AC outlets quantity: 10 AC outlet(s)
- Number of output IEC jumpers: 4
Specifications
RoHS
| RoHS | Compliant |
|---|
Spec
| Spec | Output |
|---|
Color
| Color | Black |
|---|
Topology
| Topology | Line interactive |
|---|
Approvals
| Approvals | C-Tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE |
|---|
Filtering
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|---|
Net Weight
| Net Weight | 97.73KG |
|---|
Rack Height
| Rack Height | 5U |
|---|
Battery type
| Battery type | VRLA |
|---|
RBC Quantity
| RBC Quantity | 2 |
|---|
Audible Alarm
| Audible Alarm | Audible and visible alarms : configurable delays |
|---|
Control panel
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
|---|
Maximum Depth
| Maximum Depth | 660MM, 66.0CM |
|---|
Maximum Width
| Maximum Width | 483MM, 48.3CM |
|---|
Transfer Time
| Transfer Time | 2 ms typical : 4 ms maximum |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Filtering (33)
| Filtering (33) | Physical |
|---|
Maximum Height
| Maximum Height | 222MM, 22.2CM |
|---|
Shipping Depth
| Shipping Depth | 762MM, 76.2CM |
|---|
Shipping Width
| Shipping Width | 610MM, 61.0CM |
|---|
Input frequency
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 635MM, 63.5CM |
|---|
Shipping weight
| Shipping weight | 106.82KG |
|---|
Units per Pallet
| Units per Pallet | 4.0 |
|---|
Input Connections
| Input Connections | Hard wire 3-wire |
|---|
Interface Port(s)
| Interface Port(s) | DB-9 RS-232, SmartSlot |
|---|
Load Crest Factor
| Load Crest Factor | 3 : 1 |
|---|
Standard warranty
| Standard warranty | 2 years repair or replace |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Audible Alarm (30)
| Audible Alarm (30) | Surge Protection and Filtering |
|---|
Output Connections
| Output Connections | (4) IEC Jumpers(2) IEC 320 C19(8) IEC 320 C13 |
|---|
Transfer Time (14)
| Transfer Time (14) | Input |
|---|
Master Carton Units
| Master Carton Units | 1.0 |
|---|
Operating Elevation
| Operating Elevation | 0 - 3048meters |
|---|
Output Voltage Note
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
|---|
Storage Temperature
| Storage Temperature | -15 - 45 °C |
|---|
Surge energy rating
| Surge energy rating | 480Joules |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 230V |
|---|
Operating Temperature
| Operating Temperature | 0 - 40 °C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Output power capacity
| Output power capacity | 4.0kWatts / 5.0kVA |
|---|
Typical recharge time
| Typical recharge time | 3hour(s) |
|---|
Units per Pallet (46)
| Units per Pallet (46) | Environmental |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 230V |
|---|
Standard warranty (58)
| Standard warranty (58) | Sustainable Offer Status |
|---|
Efficiency at Full Load
| Efficiency at Full Load | 96.0 % |
|---|
Output Voltage Distortion
| Output Voltage Distortion | Less than 5 % at full load |
|---|
Storage Relative Humidity
| Storage Relative Humidity | 0 - 95 % |
|---|
Online thermal dissipation
| Online thermal dissipation | 430.0BTU/hr |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95 % |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 542 Watts |
|---|
Efficiency at Full Load (19)
| Efficiency at Full Load (19) | 96.0 % |
|---|
Efficiency at Full Load (20)
| Efficiency at Full Load (20) | Batteries & Runtime |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 4.0kWatts / 5.0kVA |
|---|
Online thermal dissipation (55)
| Online thermal dissipation (55) | Conformance |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 47 - 53 Hz For 50 Hz nominal Sync to mains |
|---|
Battery Charge Power (Watts) (26)
| Battery Charge Power (Watts) (26) | Communications & Management |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 151 - 302 Adjustable, 160 - 286V |
|---|
Audible noise at 1 meter from surface of unit
| Audible noise at 1 meter from surface of unit | 53.0dBA |
|---|
