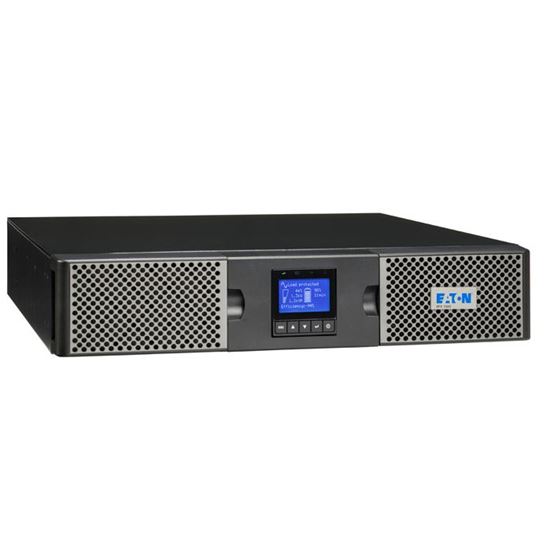

EATON 9PX 1000VA Rack/Tower UPS. 10Amp Input, 230V. Rail Kit Included. 3-5 days lead time if out of stock
Specifications
Spec
Spec
General
Outlets
Outlets
(8) IEC-320-C13
Topology
Topology
On-line double conversion with Power Factor Correction (PFC) system
Warranty
Warranty
3 years electronics, 2 years battery
Approvals
Approvals
CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star
Frequency
Frequency
50/60 Hz autoselection
Connection
Connection
(1) IEC-320-C14
Part Number
Part Number
9PX1000IRT2U
Weight (kg)
Weight (kg)
17.4
EMC Markings
EMC Markings
IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B
Audible Noise
Audible Noise
35dB
Configuration
Configuration
Rack/Tower
User Interface
User Interface
Multilingual graphical LCD display
Frequency Range
Frequency Range
40-70 Hz
Nominal Voltage
Nominal Voltage
200/208/220/230/240V
Safety markings
Safety markings
IEC/EN 62040-1, UL 1778, CSA 22.2
Output Frequency
Output Frequency
50/60 Hz autoselect, frequency converter mode
Rail Kit Included
Rail Kit Included
Yes
Rating (VA/Watts)
Rating (VA/Watts)
1000/1000
Battery Management
Battery Management
ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Communication Slot
Communication Slot
1 slot for Network-MS card, ModBus-MS or Relay-MS cards.
Communication Ports
Communication Ports
1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Input Voltage Range
Input Voltage Range
176-276V without derating (up to 100-276V with derating)
Frequency Range (15)
Frequency Range (15)
Electrical Output
Nominal Voltage (16)
Nominal Voltage (16)
200/208/220/230/240V
Operating Temperature
Operating Temperature
0 to 40°C
Output Frequency (20)
Output Frequency (20)
Battery
Rail Kit Included (9)
Rail Kit Included (9)
Electrical Input
Communication Slot (27)
Communication Slot (27)
Environmental & Standards
Efficiency (Normal Mode)
Efficiency (Normal Mode)
Up to 91.5% in online mode (up to 97.5% in Hi-efficiency mode)
