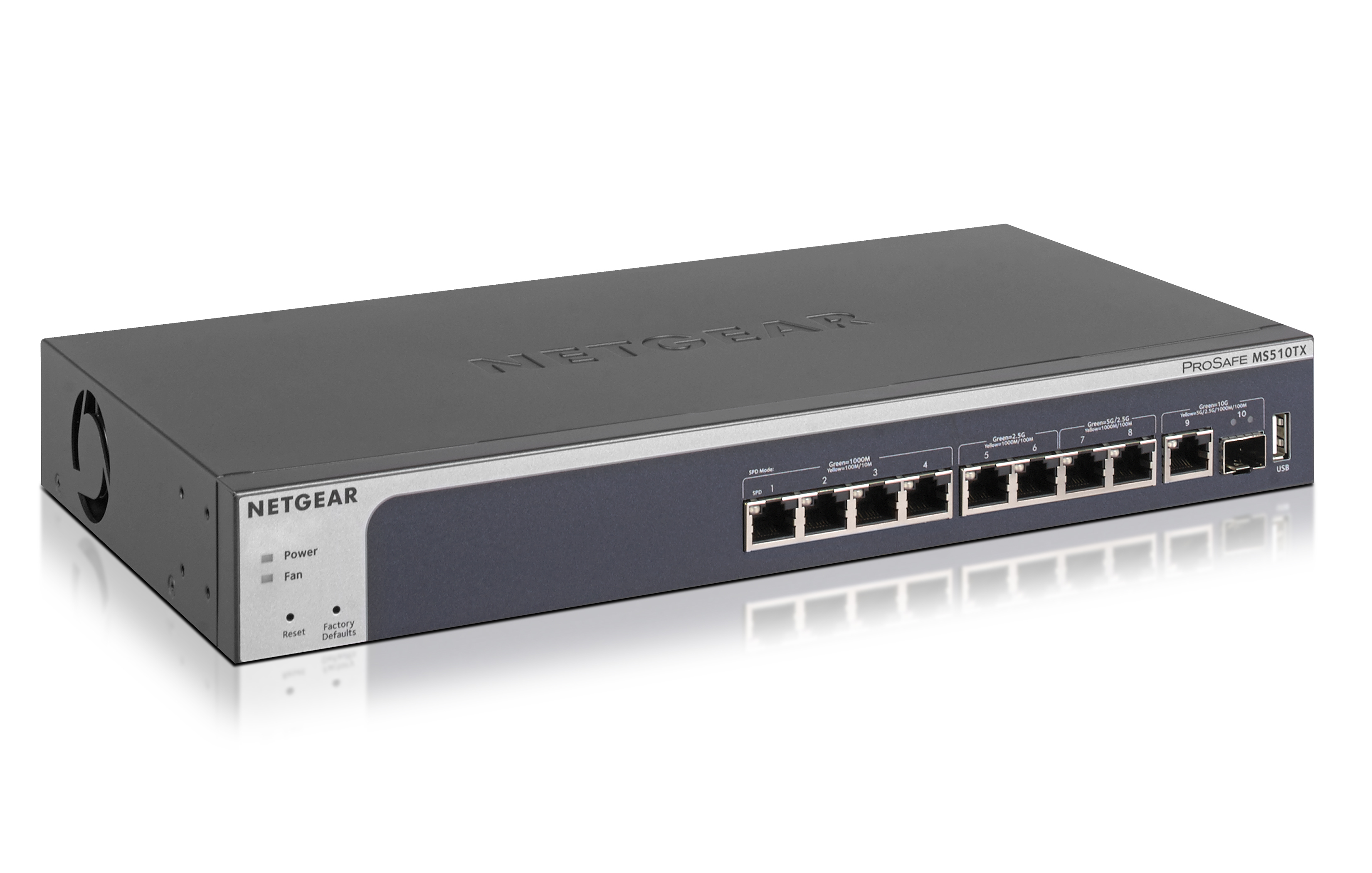

NETGEAR 8-PORT MULTI-GIGABIT SMART SWITCH

NETGEAR 10-PORT MULTI-GIGABIT/10G SMART SWITCH (MS510TX) - MANAGED WITH 1 X 10G SFP+ DESKTOP/RACKMOUNT AND PROSAFE LIFETIME PROTECTION

  • Brand: NETGEAR
  • Category: Switches
  • SKU: 4173401
  • MPN: MS510TX-100AJS
NETGEAR

NETGEAR MS510TX Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Grey

SKU
CNZ-IM-006752
MPN
MS510TX-100AJS

Overview

Introducing a new Gigabit, Multi-Gigabit and 10-Gigabit Smart Managed Pro Switch Family for future-proof deployments
Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy CAT5e / CAT6 cables.

That is why NETGEAR launched its new Multi-Gigabit Smart Managed Pro Switches with 10G Copper/Fiber Uplinks. Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the MS510TX and MS510TXPP give the exact speed required, with no downgrade. Also, the new NETGEAR Multi-Gigabit switch ports can connect regular CAT5e Ethernet cables, without the need to upgrade to CAT6 wiring, therefore reducing wiring costs and hassle.

Access, Aggregation or Collapsed Core: You can now have your PCs, printers and routers/firewalls connected at 1G and aggregate Multi-Gigabit Ethernet new devices on the same switch, all line-rate. 10G copper and fiber ports are ready for local servers and storage, or high-speed aggregation to your network core.

Key features

  • Switch type: Managed
  • Switch layer: L2/L3/L4
  • Quality of Service (QoS) support: Yes
  • ARP inspection: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Console port: RJ-45
  • USB 2.0 ports quantity: 1
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Broadcast storm control: Yes
  • VLAN support: Yes
  • Number of VLANs: 256
  • Switching capacity: 78 Gbit/s
  • MAC address table: 16000 entries
  • Latency (10 Gbps): 2.36 µs
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Packet buffer memory: 1.5 MB
  • DHCP features: DHCP client, DHCP server
  • Access Control List (ACL): Yes
  • Access Control List (ACL) rules: 164
  • IGMP snooping: Yes
  • Multicast support: Yes

Specifications

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)10.19 W
Power consumption (max)26.1 W

Design

Rack mountingYes
Product colourGrey

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Broadcast storm controlYes
VLAN supportYes
Number of VLANs256

Security

DHCP featuresDHCP client, DHCP server
Access Control List (ACL)Yes
Access Control List (ACL) rules164
IGMP snoopingYes

Performance

Built-in processorYes
Processor frequency800 MHz
Noise level21 dB
Mean time between failures (MTBF)1078683 h

Data transmission

Switching capacity78 Gbit/s
MAC address table16000 entries
Latency (10 Gbps)2.36 µs
Jumbo frames supportYes
Jumbo frames10000
Packet buffer memory1.5 MB

Packaging content

Quick start guideYes
User guideYes
ManualYes

Multicast features

Multicast supportYes
Multicast MAC address table512 entries

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45
USB 2.0 ports quantity1

Management features

Switch typeManaged
Switch layerL2/L3/L4
Quality of Service (QoS) supportYes
ARP inspectionYes

Weight & dimensions

Width328 mm
Depth169 mm
Height43 mm
Weight1.42 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Heat dissipation89.06 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)No
