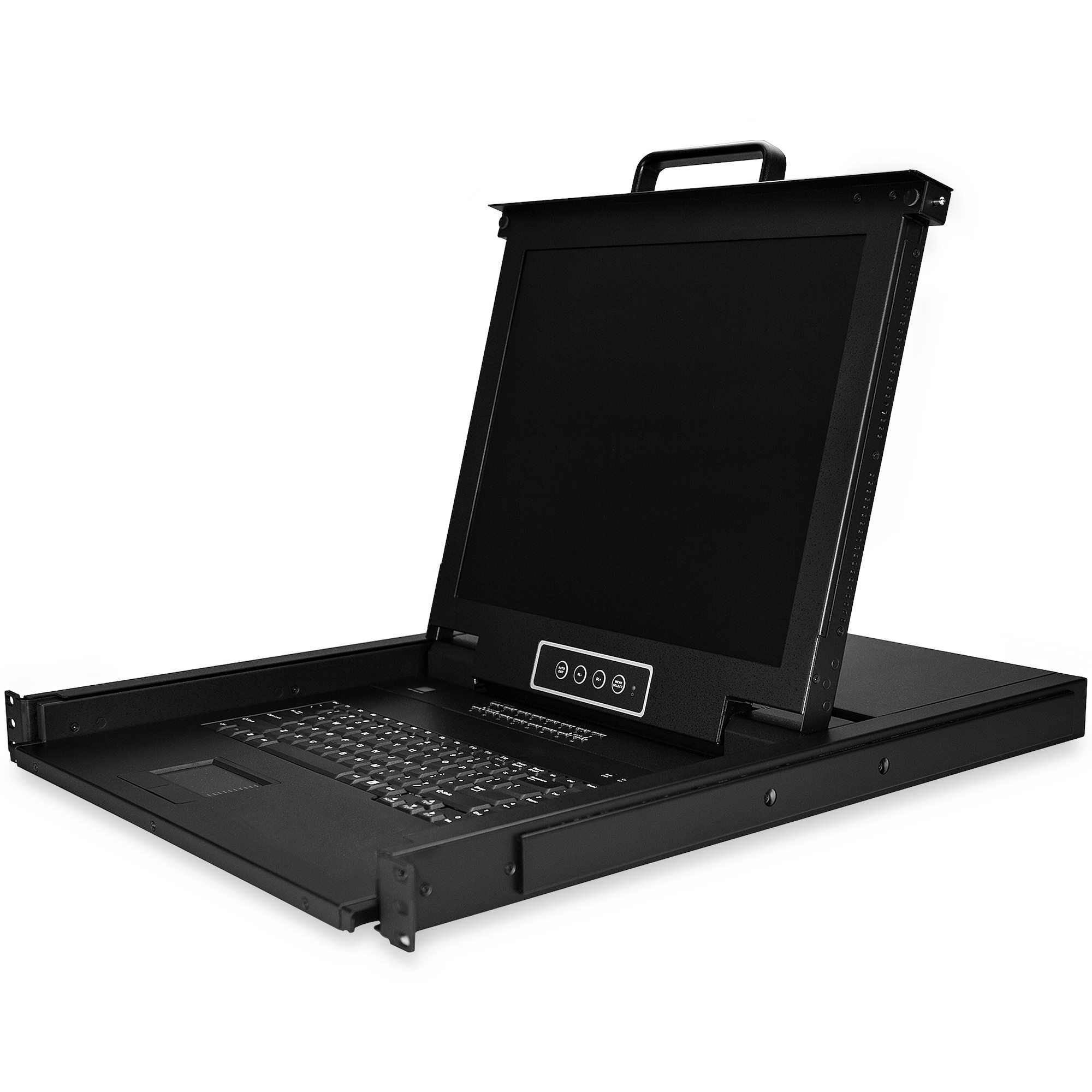

StarTech.com Rack KVM Console - 16 Port VGA - 17 LCD

16 Port Rackmount KVM Console - 17 Inch Display - 1U VGA KVM Console

  • Brand: StarTech.com
  • Category: Switches
  • SKU: 4400776
  • MPN: RKCONS1716K
StarTech.com

StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables -…

SKU
CNZ-IM-043724
MPN
RKCONS1716K

Overview

KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included

Providing centralized control of up to 16 servers, this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

The 1U rackmount console features a built-in keyboard (QWERTY), and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024.

This 16-port KVM console comes with everything you need to set up right out of the box:

• 16 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

  • Display diagonal: 43.2 cm (17")
  • Display resolution: 1280 x 1024 pixels
  • Display: TFT LCD
  • Display brightness: 250 cd/m²
  • Contrast ratio (typical): 1000:1
  • Viewing angle, horizontal: 170°
  • Viewing angle, vertical: 160°
  • On Screen Display (OSD): Yes
  • Pixel pitch: 0.264 x 0.264 mm
  • Aspect ratio: 5:4
  • Display type: LCD
  • Response time: 5 ms
  • Display number of colours: 16.78 million colours
  • Material: Steel
  • Mean time between failures (MTBF): 50000 h
  • Product colour: Black
  • Operating relative humidity (H-H): 10 - 80%
  • Rack mounting: Yes
  • Daisy chain: No
  • Key lock: No
  • IP control: No
  • LED indicators: Yes
  • Compliance certificates: RoHS
  • Rack capacity: 1U

Specifications

Power

Power consumption (typical)23 W
AC adapter input voltage100 - 240 V
Input current1.5 A

Display

Display diagonal43.2 cm (17")
Display resolution1280 x 1024 pixels
DisplayTFT LCD
Display brightness250 cd/m²
Contrast ratio (typical)1000:1
Viewing angle, horizontal170°
Viewing angle, vertical160°
On Screen Display (OSD)Yes
Pixel pitch0.264 x 0.264 mm
Aspect ratio5:4
Display typeLCD
Response time5 ms
Display number of colours16.78 million colours

Keyboard

Hot keysYes

Certificates

CertificationFCC, PSE, UL, CE, REACH

Logistics data

Master (outer) case width615 mm
Master (outer) case length765 mm
Master (outer) case height185 mm
Products per master (outer) case1 pc(s)

Packaging data

Package weight21.1 kg
Package width615 mm
Package depth765 mm
Package height185 mm

Packaging content

Cables includedKVM
Screws includedYes
Number of screws8
Mounting brackets includedYes
Cage nuts includedYes
Number of cage nuts8
Included power plug typesANZ, EU, JP, NA, UK
ManualYes

Technical details

MaterialSteel
Mean time between failures (MTBF)50000 h
Product colourBlack
Operating relative humidity (H-H)10 - 80%
Rack mountingYes
Daisy chainNo
Key lockNo
IP controlNo
LED indicatorsYes
Compliance certificatesRoHS
Rack capacity1U

Ports & interfaces

VGA (D-Sub) ports quantity16
Keyboard port typePS/2
Mouse port typePS/2
Video port typeVGA
USB 2.0 Type-A ports quantity2

Weight & dimensions

Width448 mm
Height581 mm
Depth43 mm
Weight13 kg
Mounting depth (min)56 cm
Mounting depth (max)90 cm

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
