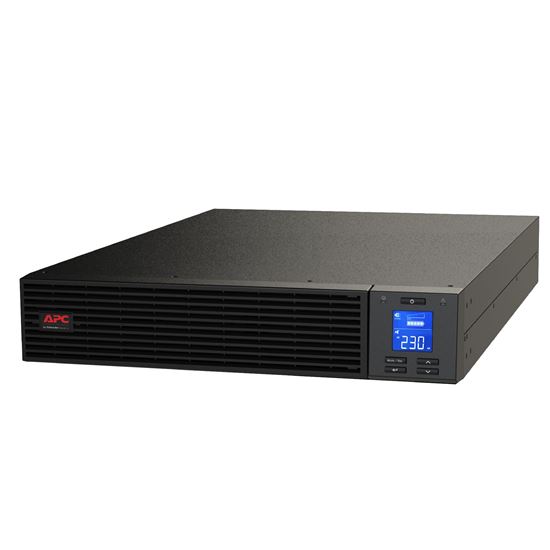

APC Easy UPS On-Line 1000VA (800W) Rack Mount. 230V Input/Output.
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: SRV1KRIRK
- MPN: SRV1KRIRK
APC
APC SRV1KRIRK uninterruptible power supply (UPS) Double-conversion…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−7%
Overview
APC Easy UPS On-Line 1000VA (800W) Rack Mount. 230V Input/Output. 3x IEC C13 Outlets. With Battery Backup. Smart Slot, LCD Graphics Display. Includes Rack Mounting Support Rails.
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1 kVA
- Output power: 800 W
- Waveform: Sine
- Input operation voltage (min): 160 V
- Input operation voltage (max): 280 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Surge energy rating: 600 J
- ECO mode: Yes
- Output voltage Total Harmonic Distortion (THD): 3%
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
- Power plug: C14 coupler
- AC outlets quantity: 3 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
- SmartSlot: Yes
- Automatic battery test: Yes
Specifications
Spec
| Spec | Output |
|---|
Bypass
| Bypass | Internal bypass (automatic and manual) |
|---|
Colour
| Colour | Black |
|---|
Topology
| Topology | Double conversion online |
|---|
Approvals
| Approvals | CE, IEC 62040-1-1, IEC 62040-1-2 |
|---|
Net Weight
| Net Weight | 11.0KG |
|---|
Bypass (10)
| Bypass (10) | Input |
|---|
Colour (38)
| Colour (38) | Environmental |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 312MM, 31.2CM |
|---|
Maximum Width
| Maximum Width | 437MM, 43.7CM |
|---|
Waveform type
| Waveform type | Sine wave |
|---|
Maximum Height
| Maximum Height | 86MM, 8.6CM |
|---|
Shipping Depth
| Shipping Depth | 551MM, 55.1CM |
|---|
Shipping Width
| Shipping Width | 455MM, 45.5CM |
|---|
Input frequency
| Input frequency | 40~70Hz |
|---|
Shipping Height
| Shipping Height | 218MM, 21.8CM |
|---|
Shipping weight
| Shipping weight | 13.1KG |
|---|
Protection Class
| Protection Class | IP20 |
|---|
Interface Port(s)
| Interface Port(s) | DB-9 RS-232, USB |
|---|
Load Crest Factor
| Load Crest Factor | 3:1 |
|---|
Standard warranty
| Standard warranty | 2 years repair or replace |
|---|
Storage Elevation
| Storage Elevation | 0~15240m |
|---|
Operating Elevation
| Operating Elevation | 0 - 9144meters |
|---|
Output Voltage Note
| Output Voltage Note | Configurable for 220: 230 or 240 nominal output voltage |
|---|
Storage Temperature
| Storage Temperature | -20°C~50°C |
|---|
Surge energy rating
| Surge energy rating | 600Joules |
|---|
Other Input Voltages
| Other Input Voltages | 220, 240 |
|---|
Number of Power Cords
| Number of Power Cords | 1 |
|---|
Operating Temperature
| Operating Temperature | 0°C~40°C |
|---|
Other Output Voltages
| Other Output Voltages | 220, 240 |
|---|
Protection Class (46)
| Protection Class (46) | Conformance |
|---|
Typical recharge time
| Typical recharge time | 4 hour(s) |
|---|
Efficiency at Full Load
| Efficiency at Full Load | 88.0% |
|---|
Surge energy rating (28)
| Surge energy rating (28) | Physical |
|---|
Other Input Voltages (16)
| Other Input Voltages (16) | Batteries & Runtime |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0%~95% (Non-condensing) |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 38W |
|---|
Efficiency at Full Load (14)
| Efficiency at Full Load (14) | 88.0% |
|---|
Battery Volt-Amp-Hour Capacity
| Battery Volt-Amp-Hour Capacity | 216 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 800 Watts / 1.0kVA |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60Hz +/- 1Hz Sync to mains |
|---|
Battery Volt-Amp-Hour Capacity (21)
| Battery Volt-Amp-Hour Capacity (21) | Communications & Management |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 160V~280V |
|---|
Available SmartSlot™ Interface Quantity
| Available SmartSlot™ Interface Quantity | 1 |
|---|
Available SmartSlot™ Interface Quantity (26)
| Available SmartSlot™ Interface Quantity (26) | Surge Protection and Filtering |
|---|
Audible noise at 1 meter from surface of the unit
| Audible noise at 1 meter from surface of the unit | 50.0dBA |
|---|
Questions
$1,289.14inc GST
