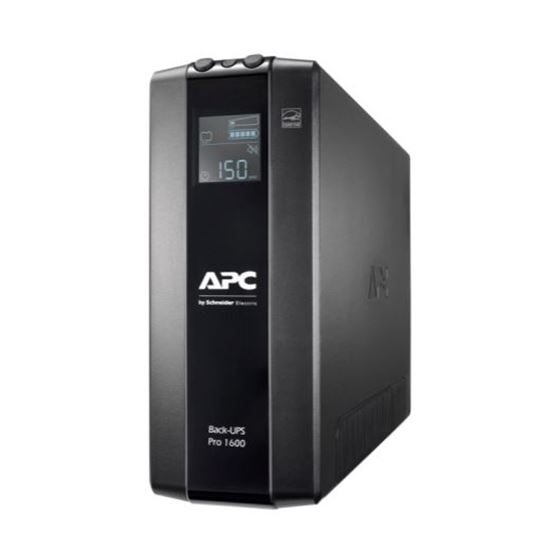

APC Back-UPS PRO Line Interactive 1600VA (960W) with AVR, 230V
- Brand: APC
- Category: Uninterruptible Power Supplies (upss)
- SKU: BR1600MI
- MPN: BR1600MI
APC
APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, AVR,…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−7%
Overview
APC Back-UPS PRO Line Interactive 1600VA (960W) with AVR, 230V Input/Output. 8x IEC C14 Outlets. With Battery Backup & Surge Protect. LCD Display.
Key features
- UPS topology: Line-Interactive
- Output power capacity: 1.6 kVA
- Output power: 960 W
- Waveform: Sine
- Input operation voltage (min): 176 V
- Input operation voltage (max): 294 V
- Input frequency: 50/60 Hz
- Output frequency: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Maximum current: 10 A
- Surge energy rating: 509 J
- ECO mode: Yes
- Noise level: 45 dB
- Surge protection: Yes
- Surge protection features: Network
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- Ethernet LAN (RJ-45) ports: 2
- Cabling technology: 10/100/1000Base-T(X)
Specifications
RoHS
| RoHS | Compliant |
|---|
Spec
| Spec | Output |
|---|
Colour
| Colour | Black |
|---|
Topology
| Topology | Line-interactive |
|---|
Approvals
| Approvals | A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI |
|---|
Filtering
| Filtering | Full-time multi-pole noise filtering: 10% of IEEE surge let-through: zero clamping response time: instantaneous |
|---|
SCC Codes
| SCC Codes | 10731304346910 |
|---|
Net Weight
| Net Weight | 10.9KG |
|---|
Battery type
| Battery type | Lead-acid battery |
|---|
RBC Quantity
| RBC Quantity | 1 |
|---|
Audible Alarm
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
|---|
Control panel
| Control panel | Multifunction LCD status and control console |
|---|
Maximum Depth
| Maximum Depth | 382MM, 38.2CM |
|---|
Maximum Width
| Maximum Width | 250MM, 25.0CM |
|---|
Filtering (27)
| Filtering (27) | Physical |
|---|
Maximum Height
| Maximum Height | 100MM, 10.0CM |
|---|
SCC Codes (41)
| SCC Codes (41) | Environmental |
|---|
Shipping Depth
| Shipping Depth | 225MM, 22.5CM |
|---|
Shipping Width
| Shipping Width | 485MM, 48.5CM |
|---|
Input frequency
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
|---|
Shipping Height
| Shipping Height | 330MM, 33.0CM |
|---|
Shipping weight
| Shipping weight | 11.65KG |
|---|
Input Connections
| Input Connections | IEC 60320 C14 |
|---|
Interface Port(s)
| Interface Port(s) | USB |
|---|
Standard warranty
| Standard warranty | 2 years repair or replace, 3 years repair or replace for European Union countries |
|---|
Storage Elevation
| Storage Elevation | 0 - 15240meters |
|---|
Audible Alarm (23)
| Audible Alarm (23) | Surge Protection and Filtering |
|---|
Output Connections
| Output Connections | (2) IEC 60320 C13(6) IEC 60320 C13 |
|---|
Master Carton Units
| Master Carton Units | 1.0 |
|---|
Operating Elevation
| Operating Elevation | 0 - 3048meters |
|---|
Storage Temperature
| Storage Temperature | -15 - 45 °C |
|---|
Surge energy rating
| Surge energy rating | 509Joules |
|---|
Data Line Protection
| Data Line Protection | RJ45 10/100/1000 Base-T Ethernet protection |
|---|
Master Carton Weight
| Master Carton Weight | 13.4 |
|---|
Maximum Input Current
| Maximum Input Current | 10.0A |
|---|
Nominal Input Voltage
| Nominal Input Voltage | 230V |
|---|
Operating Temperature
| Operating Temperature | 0 - 40°C |
|---|
Output power capacity
| Output power capacity | 960 Watts / 1.6kVA |
|---|
Typical recharge time
| Typical recharge time | 16hour(s) |
|---|
Nominal Output Voltage
| Nominal Output Voltage | 230V |
|---|
Output Connections (7)
| Output Connections (7) | Input |
|---|
Standard warranty (53)
| Standard warranty (53) | Sustainable Offer Status |
|---|
Maximum Input Current (13)
| Maximum Input Current (13) | Batteries & Runtime |
|---|
Online thermal dissipation
| Online thermal dissipation | 22.0BTU/hr |
|---|
Equipment protection policy
| Equipment protection policy | Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP |
|---|
Operating Relative Humidity
| Operating Relative Humidity | 0 - 95 (Non-condensing) % |
|---|
Battery Charge Power (Watts)
| Battery Charge Power (Watts) | 11 Watts |
|---|
Expected Battery Life (years)
| Expected Battery Life (years) | 3 - 5 |
|---|
Max Configurable Power (Watts)
| Max Configurable Power (Watts) | 960 Watts / 1.6kVA |
|---|
Online thermal dissipation (49)
| Online thermal dissipation (49) | Conformance |
|---|
Output Frequency (sync to mains)
| Output Frequency (sync to mains) | 50/60 Hz +/- 1 Hz Sync to mains |
|---|
Battery Charge Power (Watts) (19)
| Battery Charge Power (Watts) (19) | Batteries & Runtime |
|---|
Input voltage range for main operations
| Input voltage range for main operations | 176 - 294V |
|---|
Audible noise at 1 meter from surface of the unit
| Audible noise at 1 meter from surface of the unit | 45.0dBA |
|---|
Master Carton Dimensions (Length x Width x Height)
| Master Carton Dimensions (Length x Width x Height) | 9144 x 1283 x 6502MM |
|---|
